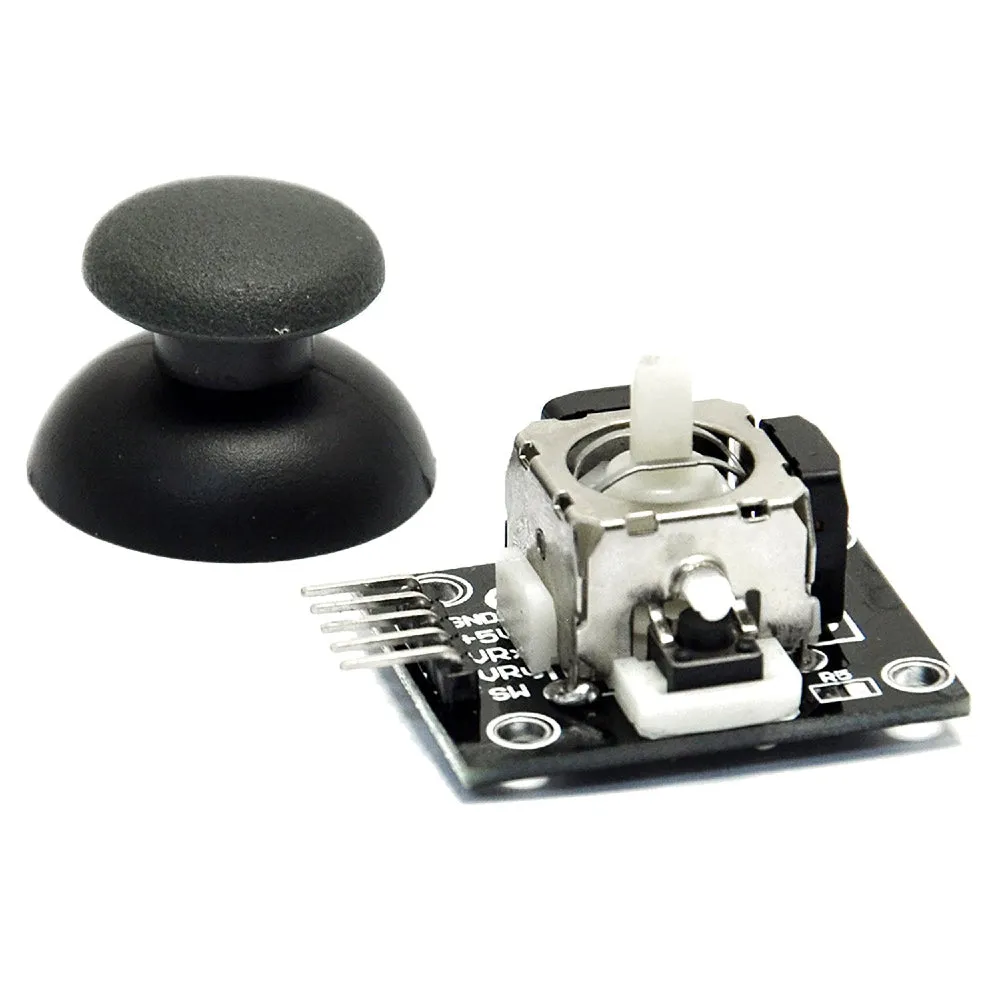

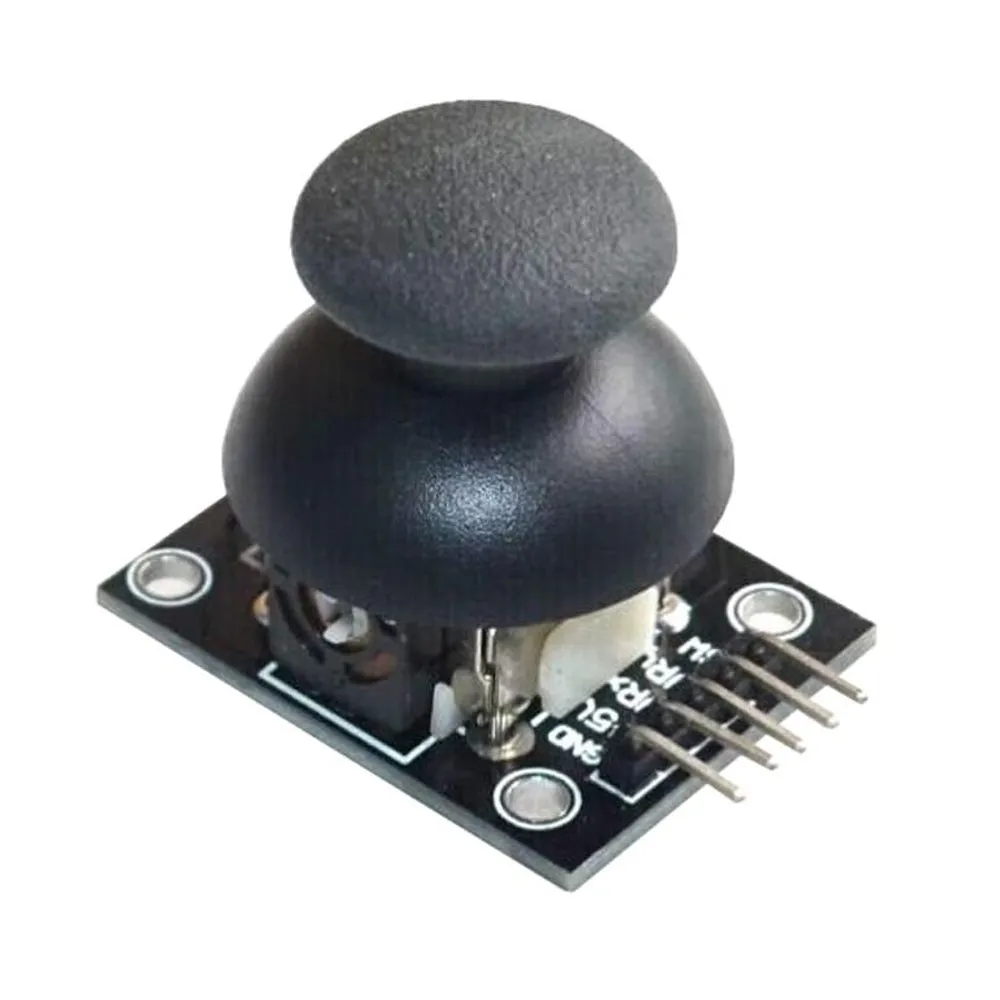

PS2 Joystick Module Breakout Sensor

This is PS2 Joystick Module Breakout Sensor very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is press down.

With the help of this Joystick Module, you can measure position coordinates on the X and Y axis by moving the “hat”. It also contains a switch that is press-able by pushing the “hat”.It also contains a switch that is press-able by pushing the “hat” down. Similar to the XBOX controller.

The X and Y axes are two 10k potentiometers which control 2D movement by generating analog signals. When the module is in working mode, it will output two analog values, representing two directions. This module uses the 5V power supply, and value, when reading through analog input, would be about 2.5V, a value will increase with joystick movement and will go up till maximum 5V; the value will decrease when the joystick is moved in other direction till 0V.

Technical Details

Operating Voltage: 5V
XY Signal: 2x Analog
Button: 1x Digital (Requires Pull-Up Resistor on Arduino)
Dimensions: 34 x 34 x 15 (LxWxH) mm.
2.54mm pin interface leads.

Features

2.54mm Pin Interface Leads
Long Service Life and Stable Performance
Standard Interface for Electronic Building Blocks
Widely Used in Arduino DIY Projects
Cross Rocker with Two-Way 10K Resistor

Frequency Display Example:

"100" Indicates PWM Output Pulse of 100Hz
"54.1" Indicates PWM Output Pulse of 54.1KHz
"1.2.4." Indicates PWM Output Pulse of 124KHz
Duty Cycle Range: 0 to 100
Three Frequencies Have the Same Duty Cycle, All Parameters Non-Volatile

Module Description:

XXX (No Decimal Point): Smallest Unit is 1Hz, Range 1Hz-999Hz
XX.X (Decimal Point in Tenths): Smallest Unit is 0.1KHz, Range 0.1KHz-99.9KHz
X.X.X (Three Decimal Points): Smallest Unit is 1KHz, Range 1KHz-150KHz

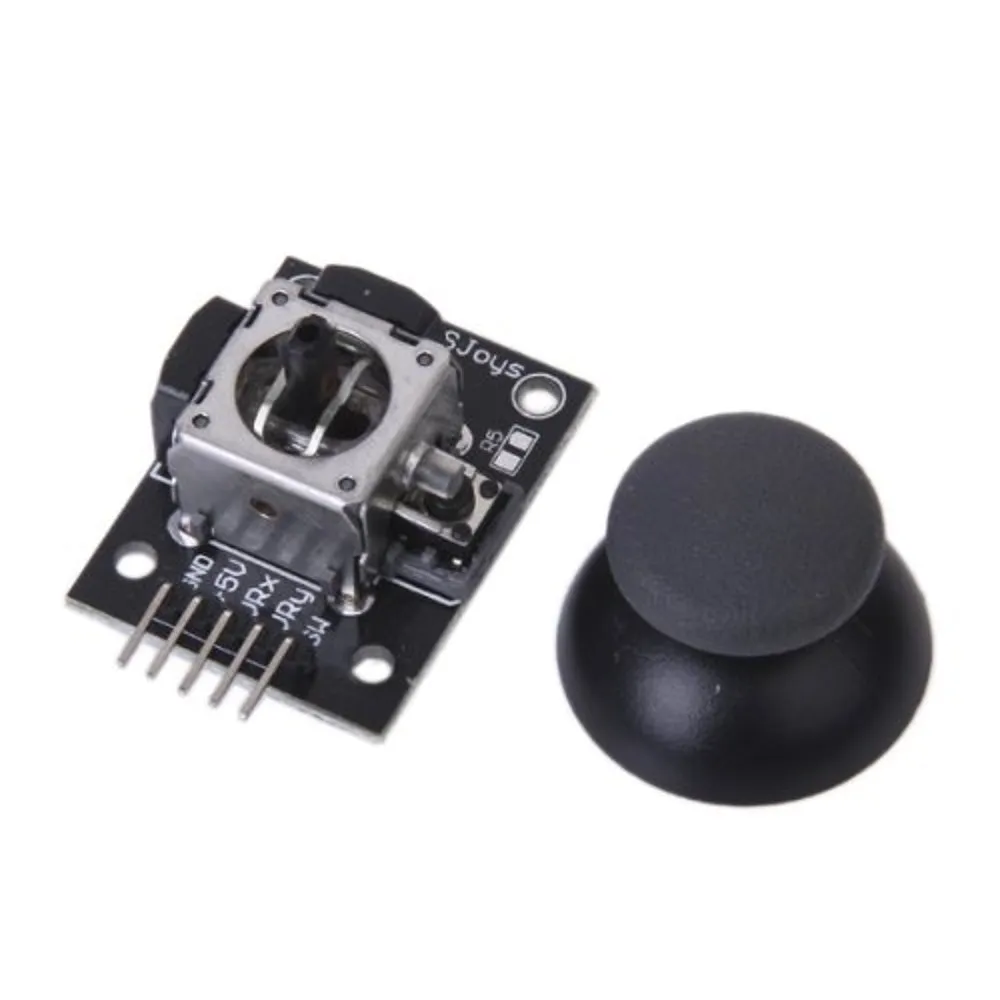

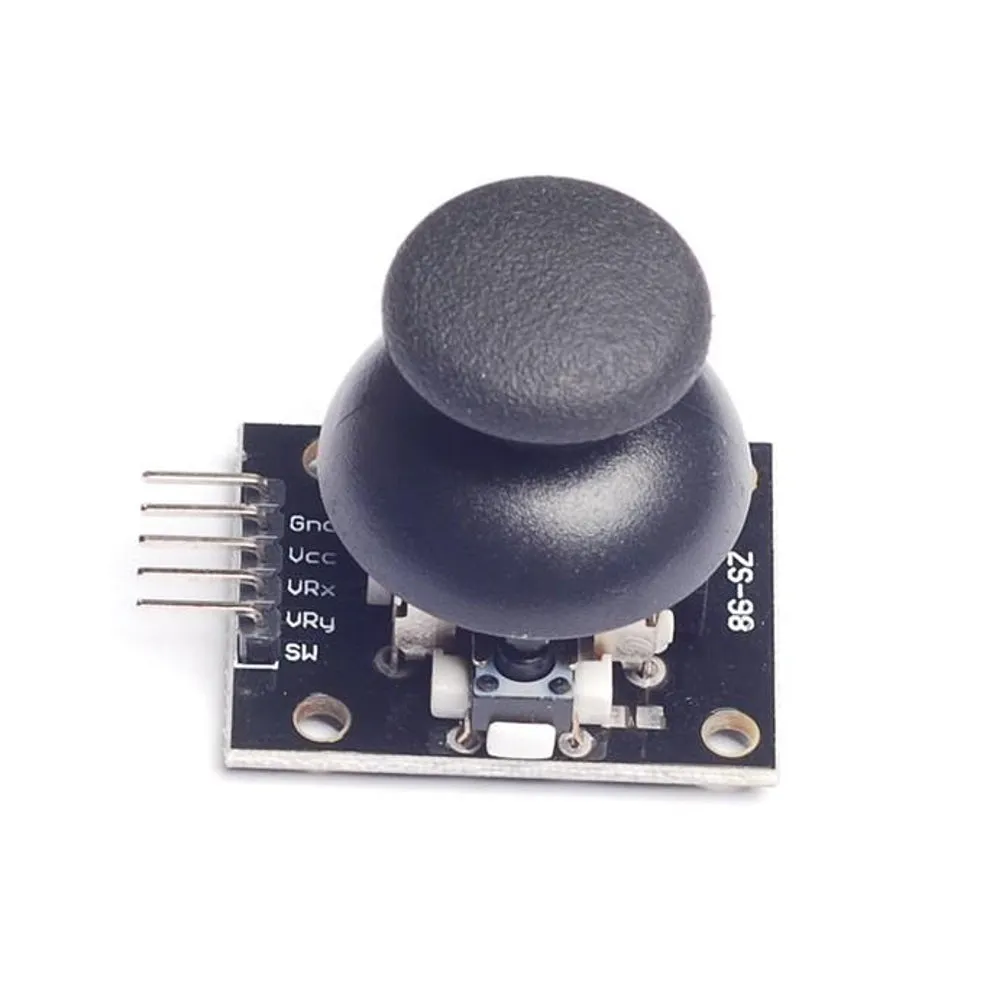

Pin Description:

1: Gnd - Ground Terminal of Module
2: 5V - Positive Supply Terminal of Module
3: VRx - Voltage Proportional to X Axis
4: VRy - Voltage Proportional to Y Axis
5: SW - Switch

Applications :

Gaming Controllers: Used in video game consoles and custom controllers.
Robotics: Controls robot movement or functions (e.g., steering, arm control).
Virtual Reality (VR): Enables input in VR environments for navigation or interaction.
Remote Control Systems: Used for controlling devices such as drones, cars, or boats.
Simulators: For flight, driving, or other simulation setups requiring movement control.
Assistive Devices: Used in devices for individuals with disabilities to interact with technology.
Custom Projects: Integrated into DIY electronics projects for human-machine interfaces.
Arduino Projects: Common in DIY projects for controlling motors or servos.
Embedded Systems: Used in portable or embedded systems for control interfaces.
Home Automation: Controls smart home systems, such as adjusting lights or appliances.
