Brand: AEM Electronics
Manufacturer's Part Number: 30-0334
Part Type: Gauges
Product Line: AEM Electronics X-Series Wideband UEGO Air/Fuel Sensor Controller Gauges
Automotive Fittings Part Number: AVM-30-0334
UPC: 00840879025854
Gauge Type: Air/Fuel ratio - Wideband
OEM Replacement: No
Gauge Style: Digital
Sending Unit: Electrical
Gauge Diameter (in.): 2 1/16 in.
Gauge Diameter (mm): 52mm
Gauge Range: 8.0:1-20:1 air/fuel ratio
Gauge Shape: Round
Sweep: Digital numeric
Gauge Face Color: Black
Gauge Number Color: White/Red
Bezel Color: Black
Illuminated: Yes
Memory Recall: No
Playback: No
Liquid-Filled: No
Shift Light Included: No
Tripometer: No
Sending Unit Included: Yes
Remanufactured: No

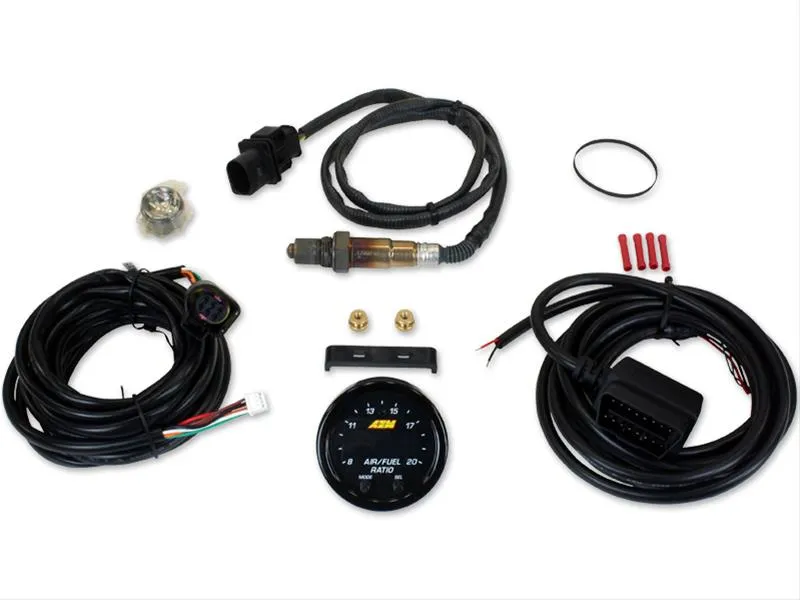

Quantity: Sold as a kit.

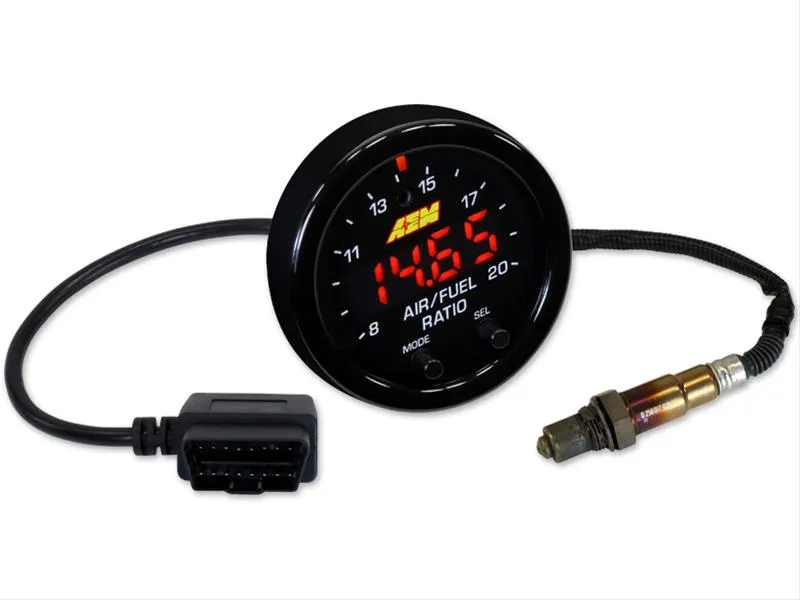

Notes: Includes a Bosch LSU 4.9 style sensor, OBD II cable, and O2 sensor bung.
Description:

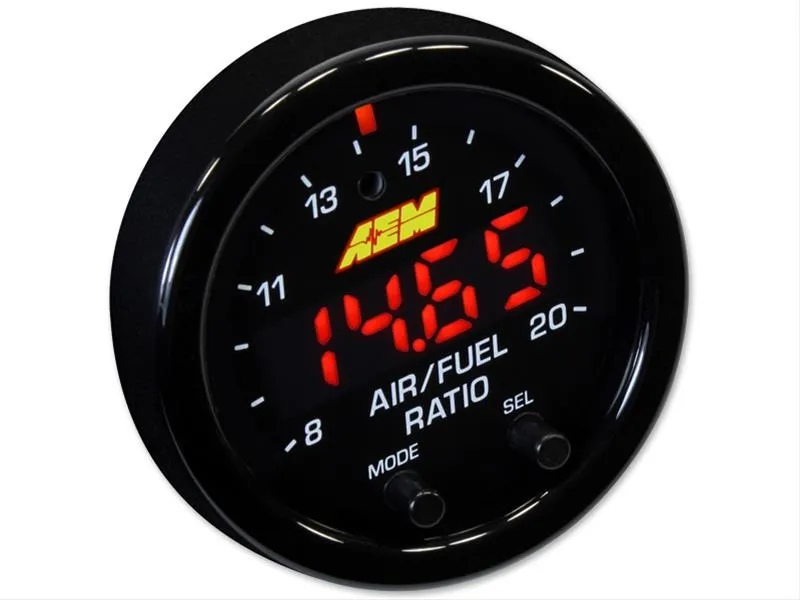

For fast response times, AEM X-Series wideband UEGO air/fuel sensor controller gauges are a great option! Built on the unique, patent-pending X-Digital technology, they report accurate information quickly— enabling you to tune your engine more efficiently. These gauges have modern, visually striking faceplates with 7-segment center displays that are 87 percent larger. They're ultra-slim and come with black bezels and black dual-faced faceplates for air/fuel and Lambda. The displays are user-configurable and feature auto-dimming.

Additional features:

* Bosch 4.9LSU wideband UEGO sensor
* Factory-calibrated resistor does not require free-air calibration—but technology allows for free-air calibration as sensor ages, if user desires
* Compatible with vehicle/system voltages up to 16 V
* 0-5 V and RS232 output for data-logging and feedback control
* AEMnet (CANbus) for data-logging and daisy-chaining multiple controllers up to 16 cylinders
* Can display AFR values in hundredths of a percent
* 52mm gauge diameter and slim 0.825 in. gauge depth
* Gauge cup depth only .200 in. deep
* Locking connectors
